12-8" ADAPTOR RING for Airfield Inset Lights - P

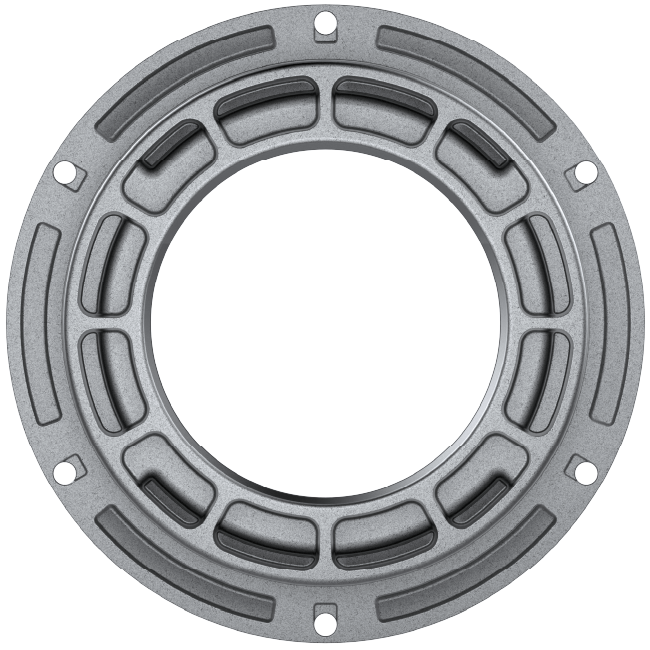

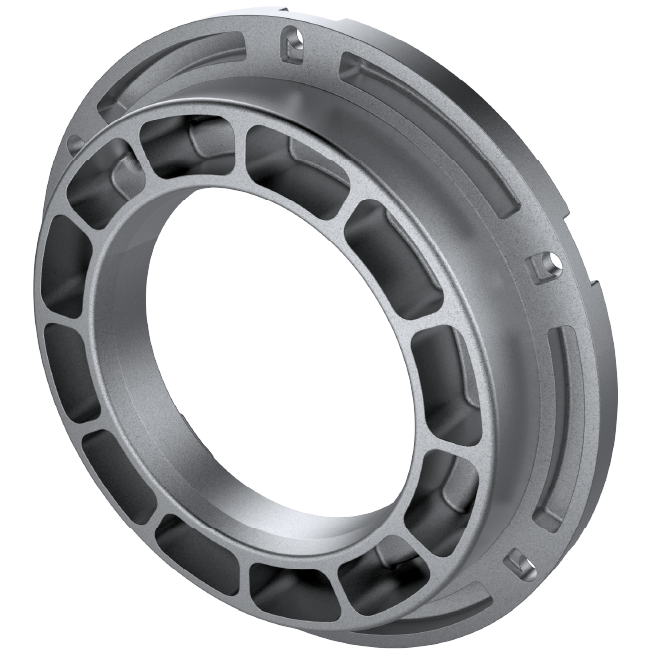

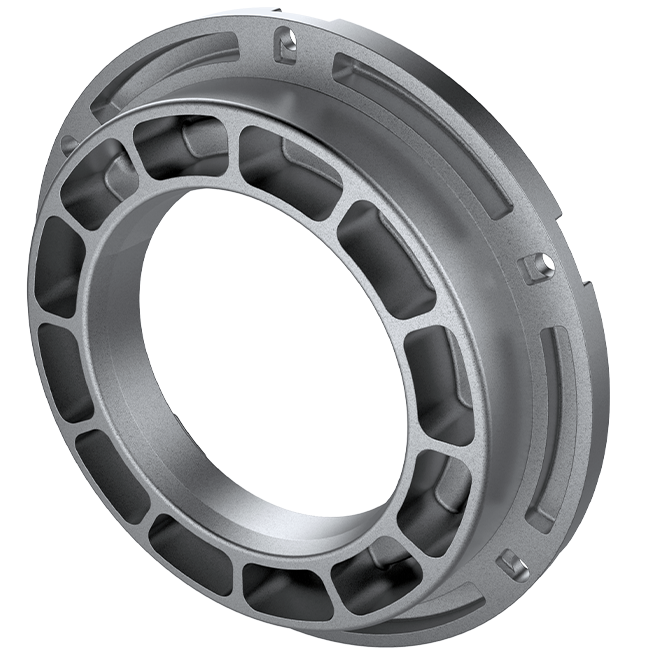

Adaptor Ring 12-8" Protected SKU: ILA-AR-128-PThe 12-8" Adaptor Ring is designated for the installation of any 8" fixtures into the 12" Shallow Base. The riser provides an effective and long lasting protection against over run and snow plough.
Product Specification
Installation Diameter
(Outer / Mid / Inner) Ø303.7mm / Ø251mm / Ø205mm
Bearing Strength
23t
Packing Dimensions
310 x 310 x 80mm
Gross Weight
3.0kg
Material
Aluminium
Recommended Mounting
(8" Fixture) 4x M10x20mm (* available as accessories)
Height
(Total / Above Surface) 62.8mm / 7.8mm
Weight
2.4kg
